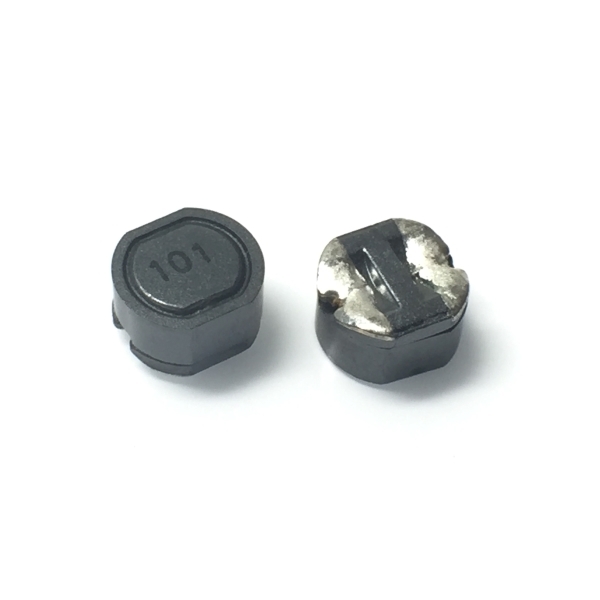

Shielded Power Inductors

SPF Series

Low profile very effective in space-conscious applications.
Low resistance and high energy storage.

    Dimensions and Electrical Characteristics (in mm)

    Part Number

    Dimensions

    Inductance

    RDC

    Rated Current

    Frequency



    LxWxH(mm)

    μH )

    Max.( Ω )

    Max.( )

    Hz

    SPF063S

    6.2*5.6*3.2

    10~68

    0.14~0.82

    0.42~1.0

    2.52M

    SPF074S

    7.8*7.0*4.5

    10~270

    0.07~1.3

    0.33~1.65

    2.52M

    SPF105S

    10.0*9.0*5.0

    10~470

    0.06~1.5

    0.33~2.06

    2.52M














          Design according to customer requirements.

          Data recorded for reference only, all to provide samples of business shall prevail.

          Recorded content may be improved or changed without notice.

    File Name : Format: Size: Download:
    SPF Series PDF 56.68 KB
