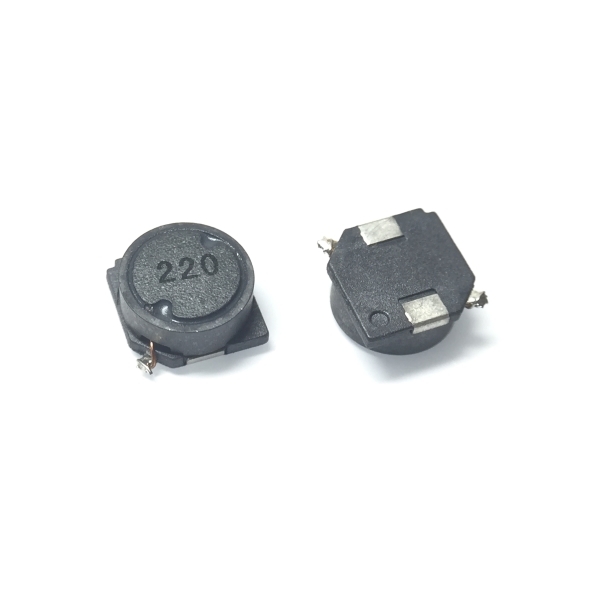

Shielded Power Inductors

SPD Series

Low profile very effective in space-conscious applications.
Low resistance and high energy storage.

    Dimensions and Electrical Characteristics (in mm)

    Part Number

    Dimensions

    Inductance

    RDC

    Rated Current

    Frequency



    LxWxH(mm)

    μH )

    Max.( Ω )

    Max.( )

    Hz

    SPD6028S

    6.0*6.0*2.8

    4.7~100

    0.034~0.516

    0.42~1.6

    1K

    SPD7028S

    7.0*7.0*2.8

    3.3~47

    0.037~0.34

    0.54~1.6

    1K

    SPD7030S

    7.0*7.0*3.0

    3.3~100

    0.023~0.45

    0.35~1.8

    1K

    SPD7032S

    7.0*7.0*3.2

    3.3~1000

    0.023~4.78

    0.13~1.9

    1K

    SPD7045S

    7.0*7.0*4.5

    3.3~1000

    0.14~2.5

    0.25~2.3

    1K

    SPD10145S

    10.1*10.1*4.5

    10~1500

    0.036~3.4

    0.26~2.5

    1K

    SPD12555S

    12.5*12.5*5.5

    6~1500

    16.4~1730

    0.29~3.6

    1K

    SPD12565S

    12.5*12.5*6.5

    2~220

    11.7~273

    1~10

    1K

    SPD12575S

    12.5*12.5*7.5

    1.2~220

    5.0~258

    1.3~13.0

    1K



          Design according to customer requirements.

          Data recorded for reference only, all to provide samples of business shall prevail.

          Recorded content may be improved or changed without notice.

    File Name : Format: Size: Download:
    SPD Series PDF 50.26 KB
