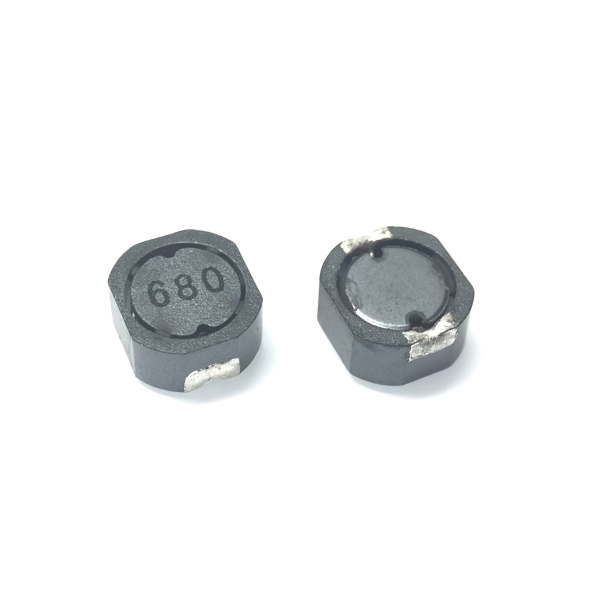

Shielded Power Inductors

SPE Series

Magnetically shielded construction

Compact and thin

Put the electrode with ferrite core directly,a small surface area allow a high mounting density.

    Dimensions and Electrical Characteristics (in mm)

    Part Number

    Dimensions

    Inductance

    RDC

    Rated Current

    Frequency



    LxWxH(mm)

    μH )

    Max.( Ω )

    Max.( )

    Hz

    SPE0520S

    5.2*5.2*2.0

    1.2~100

    0.044~1.5

    0.23~2.15

    100K

    SPE0530S

    5.2*5.2*3.0

    1.1~220

    0.02~1.2

    0.18~3.87

    100K

    SPE0625S

    6.3*6.5*2.5

    1~100

    0.014~0.82

    0.33~3.48

    100K

    SPE0630S

    6.3*6.2*3.0

    1~150

    0.014~0.769

    0.31~3.59

    100K

    SPE0635S

    6.3*6.2*3.5

    2~150

    0.02~0.691

    0.367~2.997

    100K














          Design according to customer requirements.

          Data recorded for reference only, all to provide samples of business shall prevail.

          Recorded content may be improved or changed without notice.





    File Name : Format: Size: Download:
    SPE Series PDF 45.77 KB
